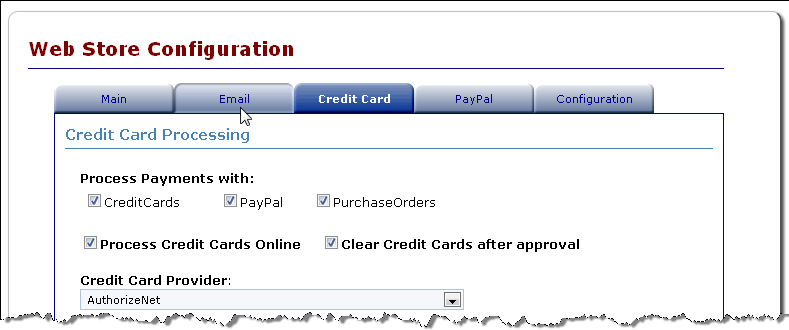

Content pages are simply created as plain <div> tags with an ID that is referenced via the TabPageClientId property in each of the TabPage child controls that are added to TabControl. A default SelectedTab can be chosen which is displayed initially and the control keeps track of the tabpage active across postbacks.
The tab control only fires on the client and there are no server side events fired. You can assign the SelectedTab property but otherwise the server side has no additional control. Client side code can activate the tab with a JavaScript ActivateTab(tabId, num) which specifies the ClientID of the tab control and the tab by number or client ID of the Div.
<div class="containercontent"> <ww:TabControl runat="server" ID="TabControls" TabHeight="25" TabWidth="120" TabstripSeparatorHeight="" > <TabPages> <ww:TabPage runat="server" ID="Page1" TabPageClientId="Page1" Caption="Page 1" Style="height:25px;width:120px;height:25px;width:120px;" /> <ww:TabPage runat="server" ID="Page2" TabPageClientId="Page2" Caption="Page 2" Style="height:25px;width:120px;height:25px;width:120px;" /> <ww:TabPage runat="server" ID="Page3" TabPageClientId="Page3" Caption="Page 3" Style="height:25px;width:120px;height:25px;width:120px;"/> </TabPages> </ww:TabControl> <div id="Page1" class="tabpage"> Page 1 </div> <div id="Page2" class="tabpage"> Page 2 </div> <div id="Page3" class="tabpage"> Page 3 </div> </div>
The following classes are used in styling the tab strip (found in westwind.css):
.tabbutton, .selectedtabbutton
{
border-style: none;
border-color: inherit;
border-width: 0px;
font-size: 8pt;
background: url('images/tabnormal.gif') no-repeat;
text-align: center;
vertical-align: middle;
cursor: hand;
color: darkblue;
width: 120px;
margin: 0px;
padding:0px;
}
.tabbutton:hover
{
background: url('images/tabhover.gif') no-repeat;
}
.selectedtabbutton
{
font-weight: bold;
color: white;
background:url('images/tabselected.gif') no-repeat;
cursor:default;
}
.tabstripseparator
{
background: navy;
}
On the server (C#):
Tabs.SelectedTab = "Page2"; // Page2 is ClientId of the <div>
On the client (JavaScript):
ActivateTab("Tabs",1); // 0 based tab collection ActivateTab("Tabs","Page2") // text based ClientID for Tab
